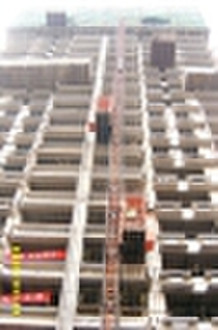

Construction lifts(A)

A serieslift is one of main products of ours, which includes a single mast and double suspended cages. Every cage is an independent system. It can operate independently. In the transmission system of the lift, the motor be used is three-phase asynchronous (modelYZEJ132M) with brake, which is capable of starting stable and compensating automatically the friction gap. We also use plane three-ring enveloping worm reducer. The guider system consists of many standard guiders linking together in high-strength bolts. Based on different conditions and environments, we can provide different size products to meet your request. The following form descripts the range of the products configuration and technical parameters. You can choose the most accurate size products just tell us the model and number according to the followings: Items UnitModelTransmission by gear and rackSC100SC100/100SC200SC200/200SCD200SCD200/200Counter weightnoyesAmount of cage12121Rated load(1cage)people1219kg10002000Operation speedm/min38.5Height of liftm≤300Size of cagem(length×width×height)3×1.3/1.5×2.5--2.7Size of mast sectionmA
